Description

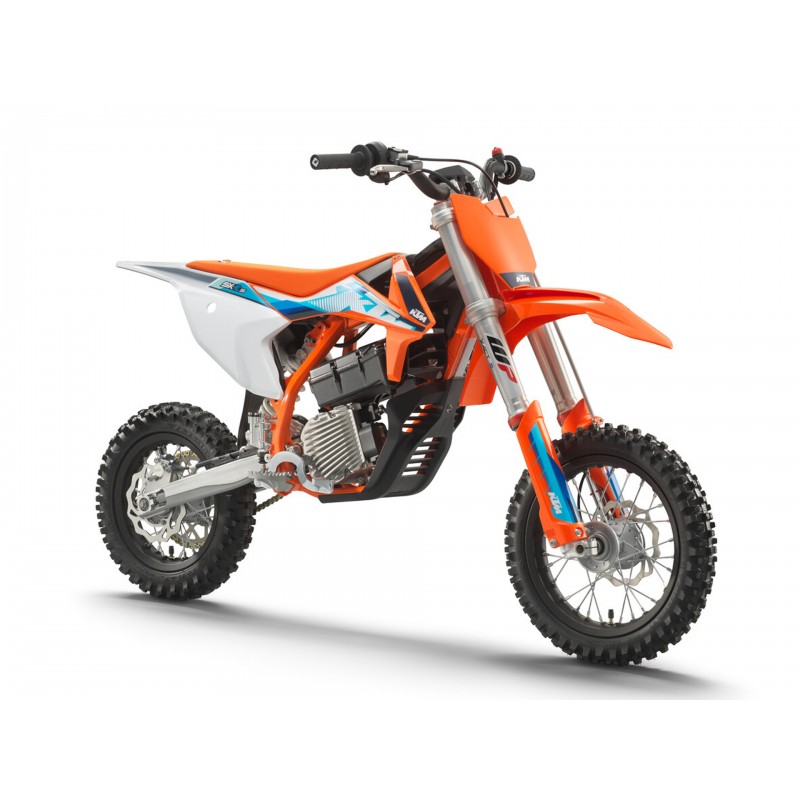

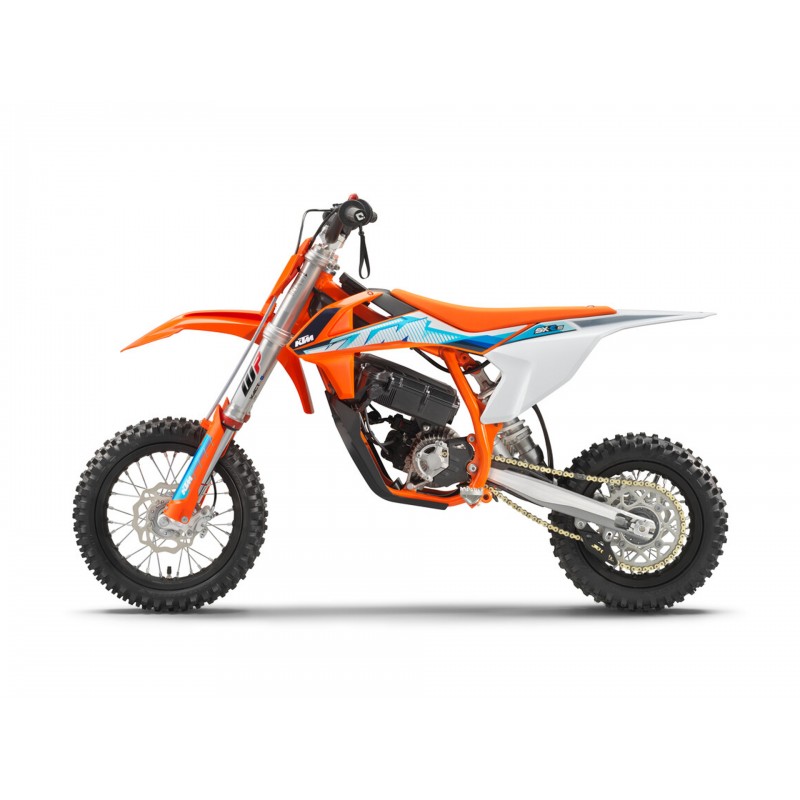

KTM SX-E 5 2025

WHY CONSIDER ELECTRIC

• No oil and filter changes
• No motor rebuilds
• No air filter cleaning
• No tuning of the motor
• No servicing the motor
• Save on buying parts and fluids
• Time back to you not spending it on working on motorbikes
• No powerband, but power modes instead
• No carrying fuel
• No exhaust noise, good for neighbourhoods and quieter areas opening up ride opportunities
• Ability to recharge away from home using your generator
• Ability to buy a lowering kit, they can start from scratch working their way up
• Adjustable power means very low speed up to bonkers fast
• Instant power delivery

TECHNOLOGY

• Approximate 2 hours ride time, or 30 mins for experts going flat-out for most of it
• Air cooled lithium-ion battery pack with 60 cells (LV traction battery)
• 907 Wh energy content
• 900 W charger included
• 80-240 V/50-60 Hz charger line voltage
• 45mins to 80% battery capacity
• 70mins to 100% battery capacity
• 5A 230V AC charging input
• Integrated battery management system for longevity and safety
• Multifunctional display (ride mode button and display, charge level, indicator lamp)
• Rollover sensor cuts the power when there’s a fall
• Magnetic switch on handlebar to connect the lanyard to
• Disconnection to the magnetic switch results in the motorcycle cutting power off
• Magnetic switch under the seat prevents unauthorised ride attempts with the lanyard
• Diagnostics connector under the seat

DRIVETRAIN

• 48V BLDC motor with outer rotor
• Nominal power 2kW
• Maximum power 5kW
• Maximum torque 13Nm
• 6 power modes (mode 1 = 6Nm, to mode 6 = 13Nm)
• Recuperation through modes 3 to 6
• Dust and waterproof motor layout hence by air cooling
• Motor is wear and maintenance free
• ECU controls precise power delivery
• No clutch or gearbox being electric

BODY

• Cast swingarm
• Central tube frame with double cradle
• Subframe from fiber-glassed reinforced extruded plastic elements
• Subframe has two mounting positions for two seat heights
• Tapered NEKEN handlebars, tapering 28mm to 22mm, 18mm in hand hold area
• Lock on ODI grips with crash pad specially developed for the electric drive
• Striking modern decals to suit the electric model

SUSPENSION, WHEELS, BRAKES

• Includes KTM fork pump
• WP XACT 35 WP upside down air forks, 35mm diameter
• WP XACT WP rear mono shock
• Front and rear disc brakes, hydraulically operated
• 160 mm disc diameters
• Lightweight black anodised aluminium wheels
• MAXXIS knobbly tyres

MEASUREMENTS

• 252 mm ground clearance
• 615 mm to 665 mm seat height
• 40 kg ready to ride weight
• Rider weights 25 to 35 kg

SERVICING

• Initial service at 10 hours
• Service at 20 hours and so on
• Brake fluid change and steering head lubrication annually regardless of hours
• Fork service at 40 hours
