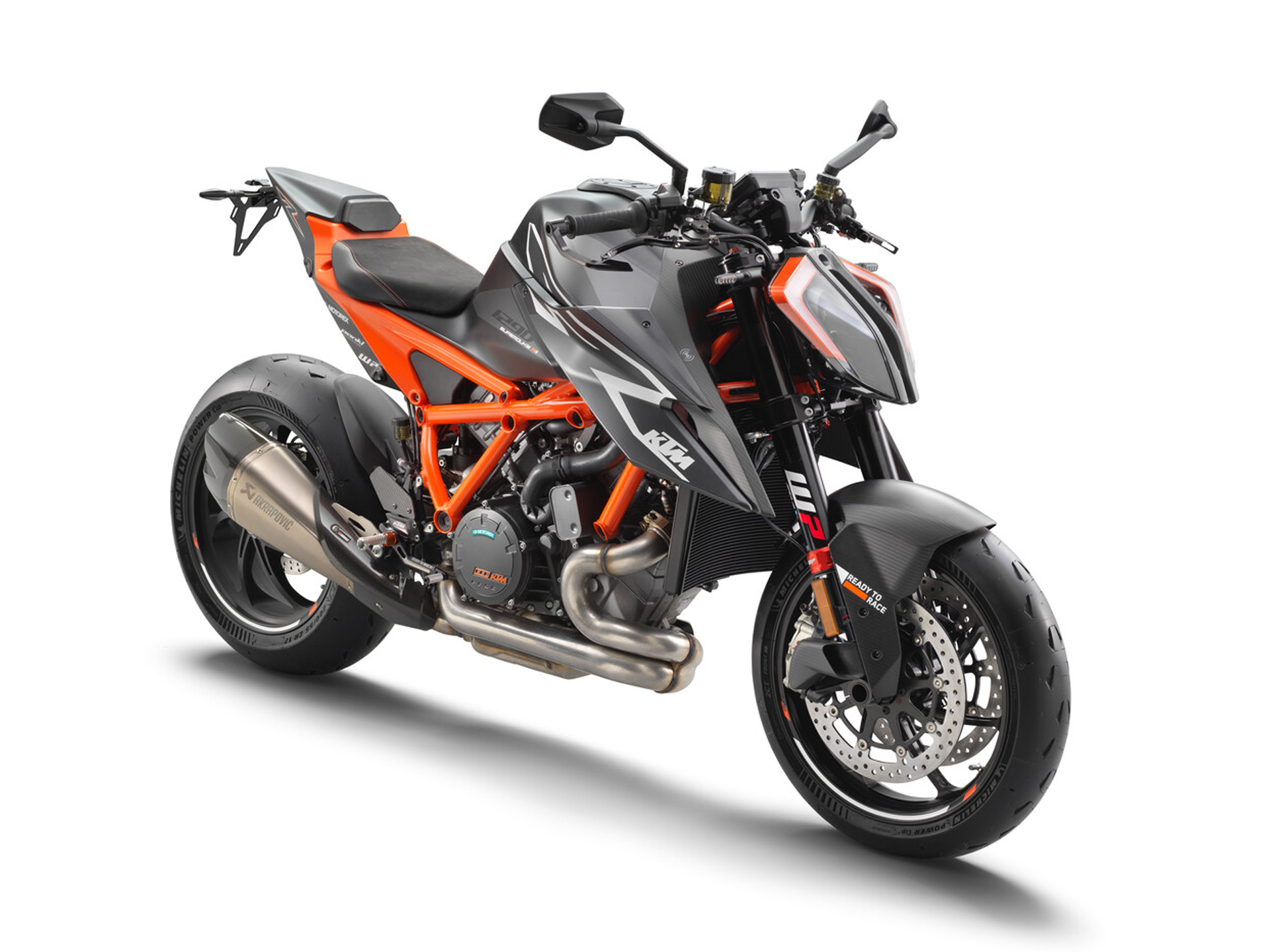

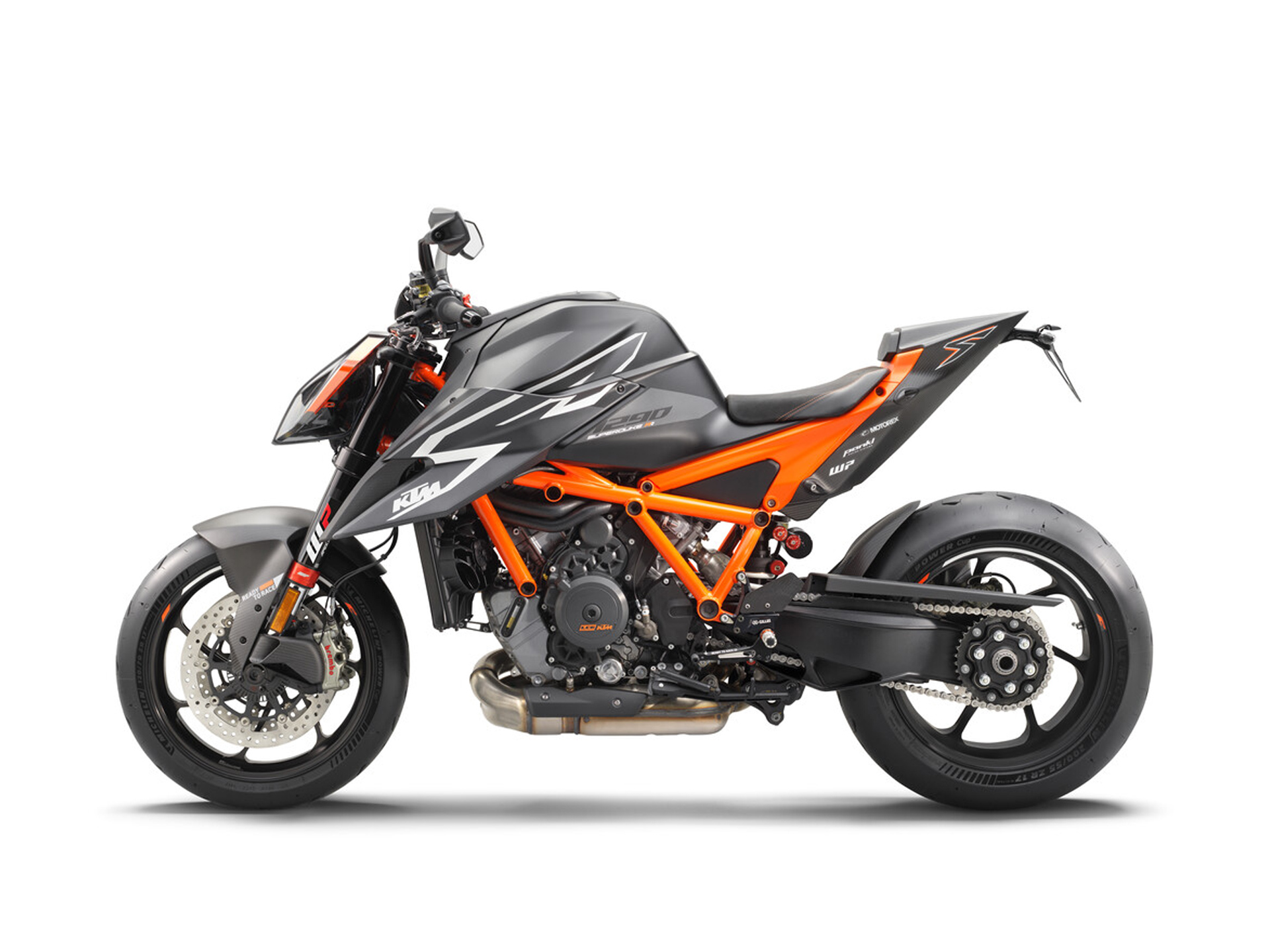

KTM 1290 SUPER DUKE RR 2023

OFFER

Reduced price that expires 30/06/2025 or when sold out.

EXCLUSIVE PURCHASE

• Limited to 500 bikes worldwide.

UNIQUE RR FEATURES

• More agile
• More rigidity
• Overall 9 kg weight reduction
• Improved high speed stability
• 11 kg less than the 1290 Super Duke R EVO
• 180 kg and 180 hp (1:1 power/weight)
• A performance based package
• RR livery and CTC graphic setting
• Every panel calculated for optimum thickness and strength
• Carbon front fender
• Carbon brake cooling duct kit
• Carbon fuel tank inner fairing
• Carbon ignition lock cover
• Carbon splash protection and chainguard
• Carbon undertray and single-seating unit
• License plate carbon removal kit
• Carbon fibre subframe with aluminium support, only 800 grams
• LED tail lights with intergrated LED turn signals
• WP PRO suspension
• WP APEX PRO 7548 Close Cartridge forks
• WP APEX PRO 7117 Steering Damper, 30 clicks adjustment
• WP APEX PRO 7746 Custom-Made Super Competition Shock (SCS) Big Valve Technology
• 7-spoke forged wheels, 1.5kg lighter than standard
• Michelin PowerCup2 tyres
• Euro5 compliant engine
• Quickturn throttle twist grip with instant 65-degree opening angle
• Akrapovic slip-on exhaust, titanium with carbon end cap
• Full system Akrapovic EVO exhaust is an optional extra
• Performance + Track Ride Modes in addition to standard Ride Modes
• Lithium-ion Battery, 2.5kg less weight than standard
• Ergo riding position with tank angled slightly outwards for elbow down cornering
• Maximum grip level specially developed seat, 12mm taller than standard
• Gilles-engineered adjustable footpegs, 12-ways and CNC machined
• Hydraulic clutch and brake levers are fully adjustable
• Shift and rear brake levers with 3 mounting positions with reverse-shifting optional
• 4 position handlebar adjustments, 22mm to the front or rear
• A line of exclusive KTM PowerParts to further enchance your RR

TECHNOLOGY

• Ride modes (rain, street, sport + extras for RR as above)
• 5" TFT colour dashboard, angle adjustable
• LED lighting front and rear
• Ram air within headlight also cools powerful LED diodes
• Intuitive menu switch
• Two programmable switches
• Keihin engine management, double ignition
• Bosch 9.1MP 2.0 ABS with cornering and supermoto modes
• Traction control (MTC), lean and slip control
• Supermoto ABS mode, disables rear ABS, cornering function of the ABS, and lifting the rear off the tarmac
• Tyre pressure monitoring system (TPMS) warns you of loss of air in front and rear tyres
• Auto cancelling turn signals (ATIR), off in 10 secs or 150m
• KTM RaceOn key fob
•

DRIVETRAIN

• 1,301 cc LC8 75-degree V-Twin
• 134 kW (180 hp) power
• 140 Nm torque
• Liquid cooling
• Ram air intake within headlight mask
• 3 pump oil lubrication
• Thin engine casings
• Oil delivery via lightweight oil line
• Integrated carrier bracket and linkage mount to engine case
• Topfeeder injectors
• 56mm throttle bodies, fantastic air to fuel mixture at high rpm
• Twin spark ignition with powerful ignition coils
• Titanium inlet valves with chrome nitrade PVD coating
• 13.6:1 compression ratio
• Formula 1 inspired pistons for low reciprocating weight
• Hard anodized finish for minimum friction, better free revving
• 60 mm exhaust headers
• 6 speed transmission
• PASC (power assisted) slipper clutch, hydraulically operated
• PANKL gearbox with quick shift times
• Bronzed copper coating on shift forks

BODY

• Performance riding focused design
• Single seating with dedicated rider's seat for racing
• Chrome-moly tubular space frame, powder coated
• Thick diameter chassis tubes with thin walls

SUSPENSION, WHEELS, BRAKES

• WP PRO suspension per RR features
• WP Steering Damper per RR features
• Brembo front Stylema monobloc four piston callipers, radial mounted
• Brembo twin piston fixed rear calliper

MEASUREMENTS

• 16 litre fuel capacity
• 189 kg dry weight
• 320 mm front brake diameter
• 240 mm rear brake diameter
• 108 mm x 71 mm bore x stroke
• 65.6 ° steering head angle
• 130 mm front suspension travel
• 140 mm rear suspension travel
• 847 mm seat height, adjustable down to 837 mm
• Front tyre 120/70 ZR17
• Rear tyre 200/55 ZR17

IMAGES

• Some featured images here include optional KTM PowerParts available at extra cost
